1/32 Tamiya F-4B

VF-111 Sundowners

Model by Paul Cherriman

Photos by John Wilkes

--------------------

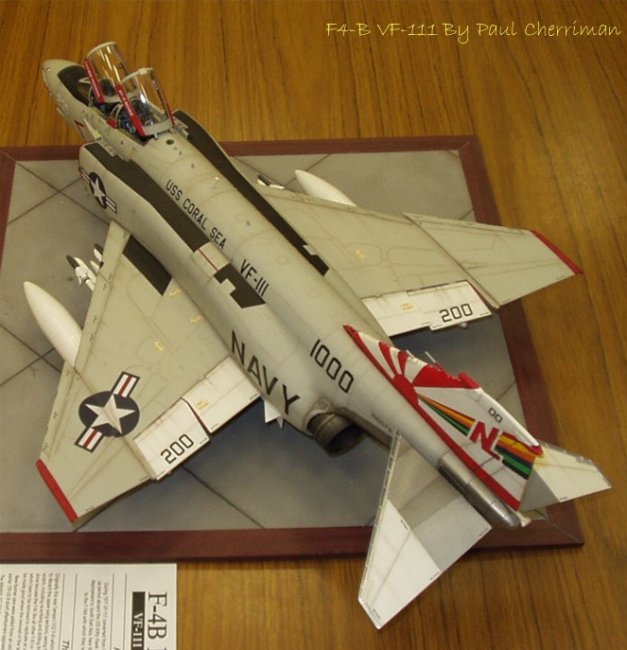

Originally this was Tamiya's 1/32 F-4J which has been converted into an earlier F-4B. Firstly I had to discard the upper wing sections, saving the flaps and slats and rebuild a new "flat" wing from scratch, including re-scribing and drilling the rivets to match the rest of the airframe. This had to be done because the F-4J like all other F-4's in this scale have the bulged upper and lower wings which have to be removed to replicate an accurate flat wing F-4B. The sides of the fuselage had to be made good where the removal of the large bulged sections left a gap between wing and fuselage.

Click on images below to see larger images

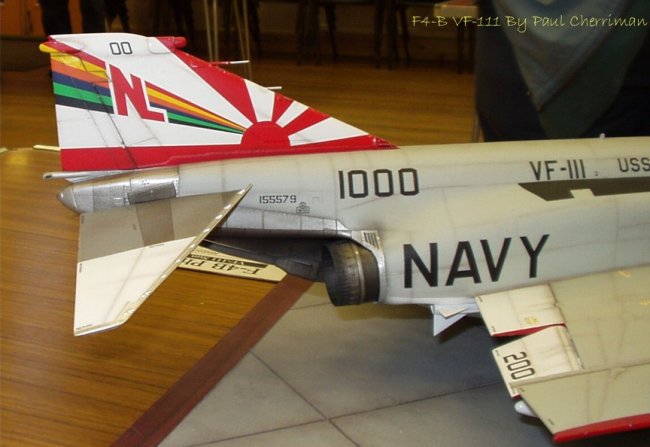

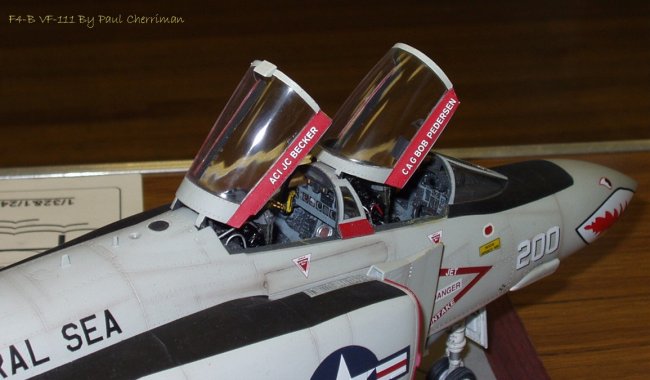

New burner cans were added from an old Revell kit with some extra detailing to represent the earlier J79 GE-8 short afterburners opposed to the J79 GE-10 long afterburners supplied with the kit. The AN/APA-157 CW Illuminator under the nose was created from a 1/72 Mig 19 drop tank with some re-shaping, the tail top front and rear mounted APR30 Radar Homing/Warning System were built from scratch. Some moving around of components plus scratch building to represent an accurate F-4B cockpit, plus Paragon seats.

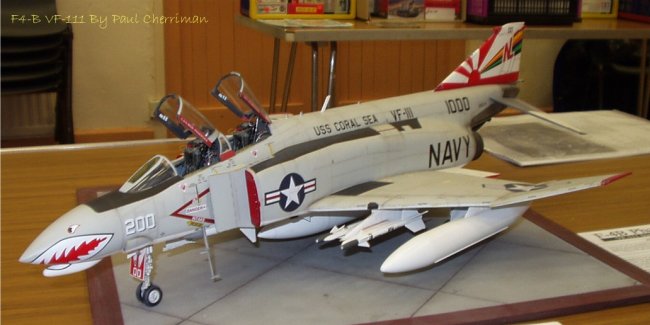

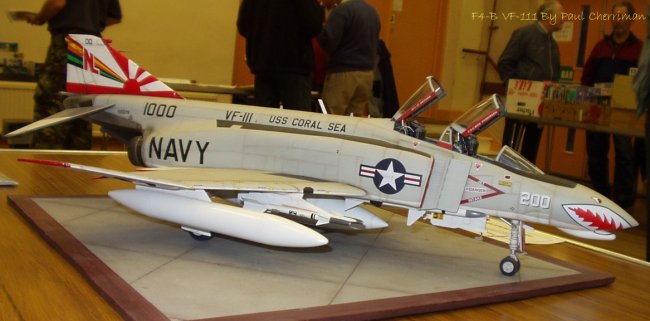

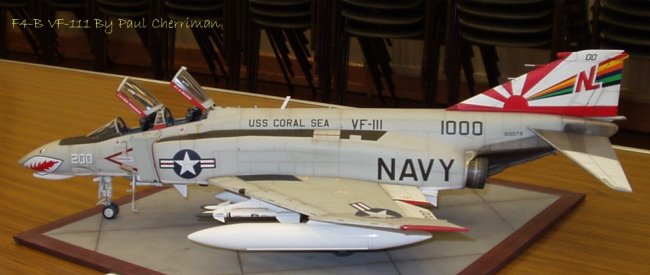

Painted and weathered to represent the CAG aircraft of VF-111 (Sundowners) aboard USS Coral Sea during the last weeks of their 6 month combat tour in South East Asia during 1972. This particular aircraft had new drop tanks for the last weeks of the tour after dropping the originals over Haiphong during a CAP mission.


Paul

Click on images below to see larger images

Photos and text © by  Paul Cherriman
