1/48 AFV Club RSAF F-5E

Gallery Article by Leslie Choy on Aug 9 2018

Singapore National Day

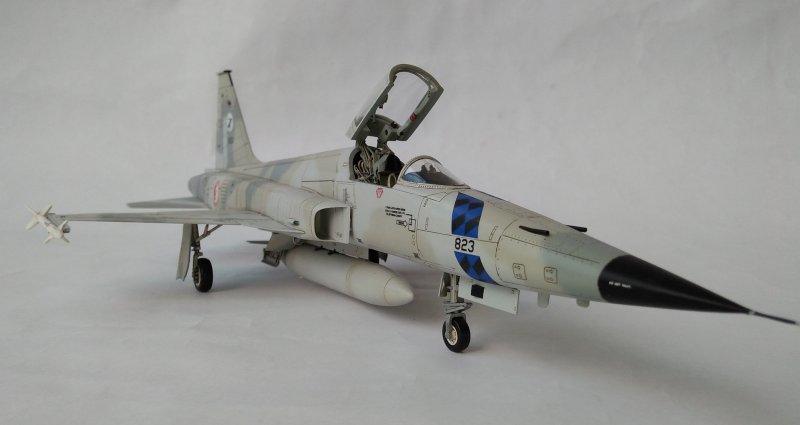

This model depicts an early RSAF's F-5E, presumably a few years into operations after delivery in the early '80s.

Click on images below to see larger images

Did some corrections and additions on the model otherwise this is a pretty much out of the box build:

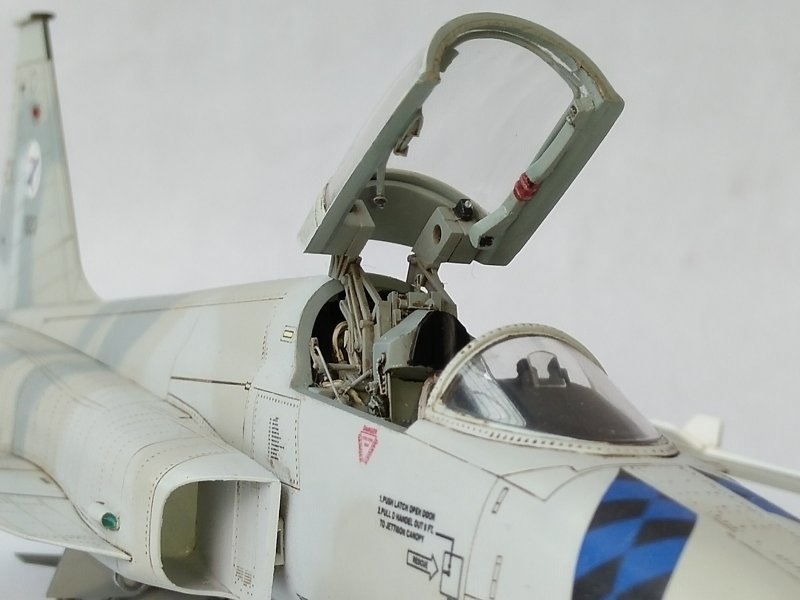

  • 1. Scratchbuilt the canopy operating mechanism, canopy air conditioning ducting and a cut out for the canopy cabin pressurizing exhaust duct.

  • 2. Added electrical wires situated behind the cockpit.

  • 3. Added a release handle in the instrument panel.

  • 4. Drilled out all nav lights and replaced with clear parts

  • 5. Reworked the engine throttle handles (one seem to be missing from my example).

  • 6. Reworked engine exhaust nozzles, did not turn out what I was expecting but at least it looked better from the original. It seems the distance between the engine exhaust nozzles and the engine turbine a little shallow .

  • 7. Engine drain pipes added to the fuselage underneath the engine.

  • 8. I separated and later rejoined the horizontal stabilizers with brass tubes, this made painting easier.

  • 9. Pitot tube replaced with brass rod/ tube.

  • 10.Gun barrels were replaced with brass tubes.

  • 11. Wolfpack ejection seat.

  • 12. Aircraft stencils are from Siam decals.

Enjoy the article and Happy National Day to all Singaporeans.

Leslie Choy

Click on images below to see larger images



Photos and text by Leslie Choy
