1/32 Academy + scratch F-16 MLU

( DUTCH ) Part 3

by Olivier Pinsolle

--------------------



We will begin our F16 MLU arms.

Click on images below to see larger images

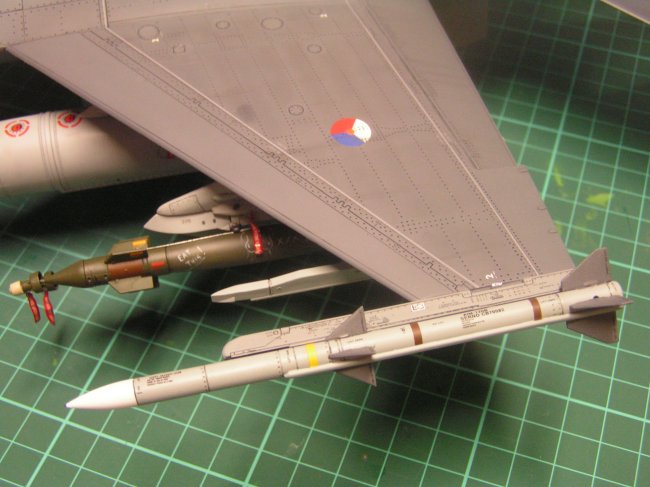

I decided following the photos, to make it with 4 GBU-12 (provided in the box) , a cantirn pod (provided in the box), a ALQ-131 in ventral (under) point (scratchbuilt) and also with the pylons with chaff  launchers (PIDS), typical of F-16 MLU (also scratchbuilt).

Click on images below to see larger images

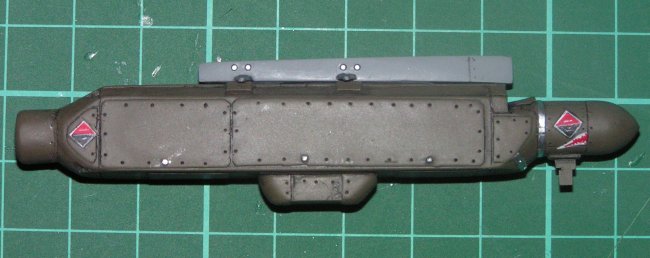

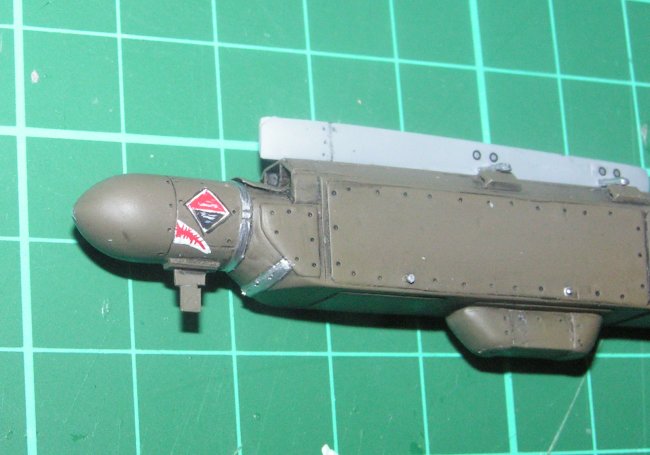

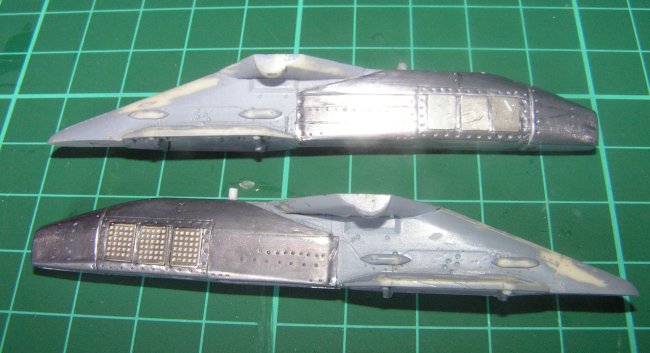

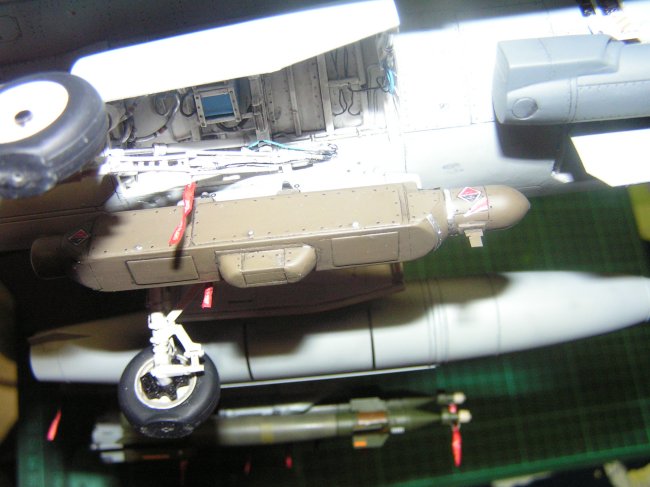

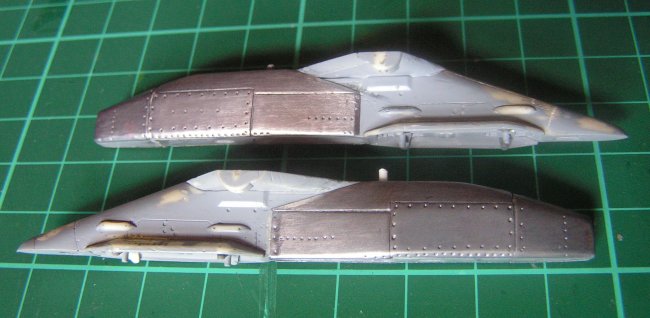

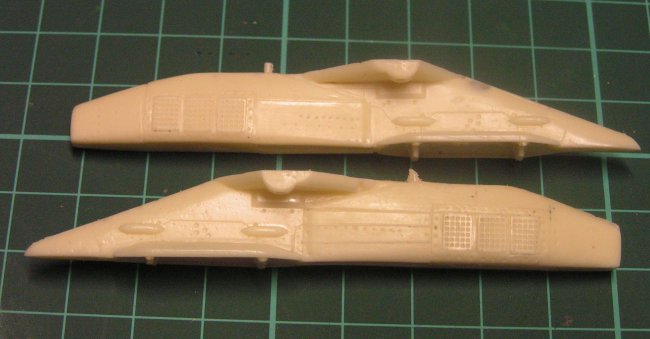

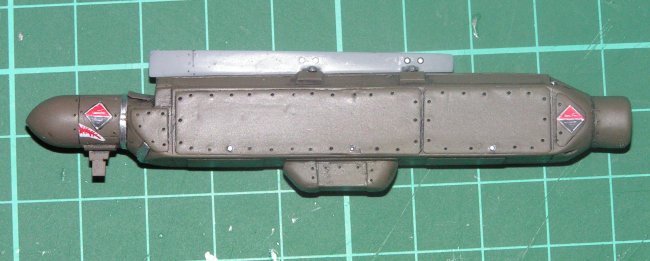

For the pids, I  used the kit parts and with the larger scale (1/32), here are the results.  Some resin pylons were made and the originals will be used on future projects.  For the ALQ-131, it'll be similar, I had no base and I worked on a plan.  So, as usual , a resin copy will be made and the original will be used on a future project.

Click on images below to see larger images

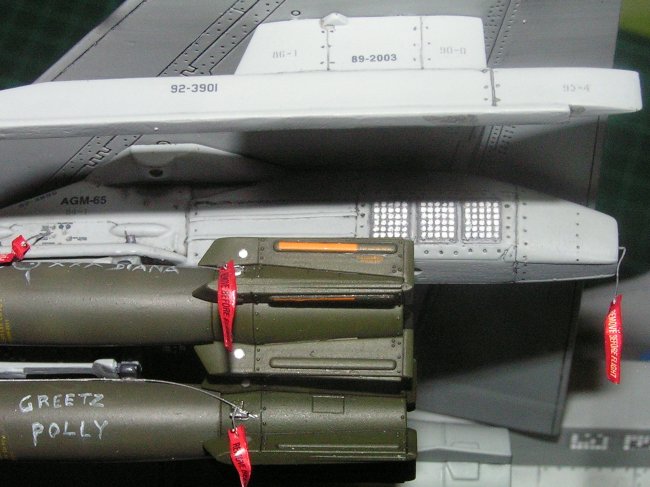

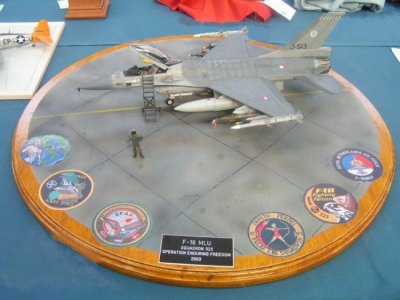

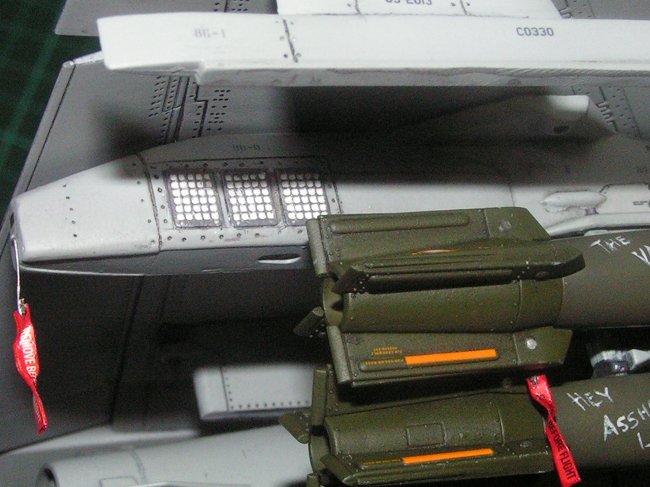

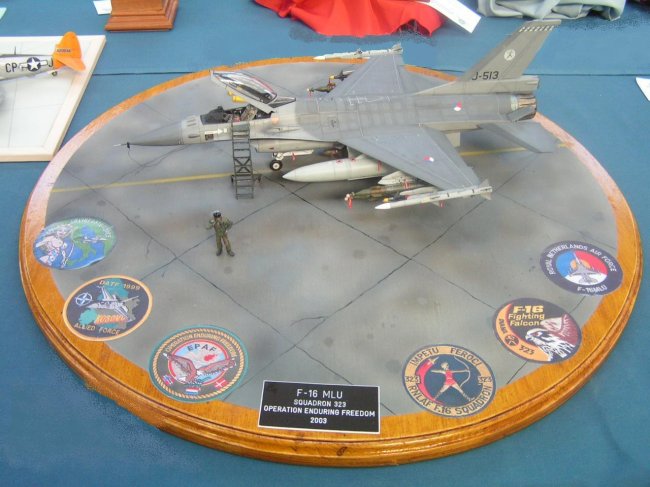

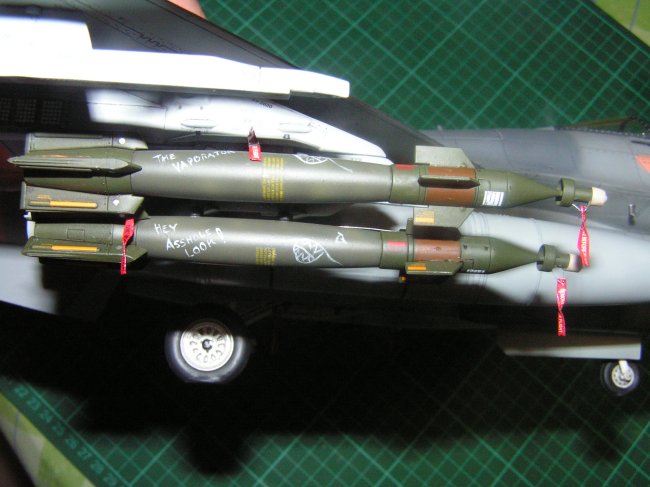

The Academy GBU-12 must be made thinner to the lazer part and the hide of the lazer security will be made in scratch for the  4 bombs.  All the arms from the Academy kit are wonderful and more there are all the stencils on the decal sheets in the box.  Here is our finished F-16 and put on it's base, surrounded by the KLU patches from Sqd 323 in homage to this aircraft and to the pilots.

Click on images below to see larger images



You can find all the improvements of this kit (PIDS, new tail with para housing, ALQ-131) on the Web site : www.smds.ws

Olivier
