1/48 Classic Airframe Vampire Fb5

by Laurent “Angus” Beauvais

--------------------



Hello all.  Back again with a non French aircraft in French markings, this time the legendary de Havilland Vampire Fb5.  From what we know 95 Fb5, ex RAF, were used by French Air Force and French Navy before France did modify the Vampire to become the Mistral (name of a wind in the south of France) :

  • Different engine implying a larger fuselage with plenty of small rectangular air intake trap on the back

  • Ejection seat

  • Triangular air intake

  • Different wheels

Click on images below to see larger images







A lot of things have been said about the Classic Airframe kit, amd they are true, the air intake and the engraving are false, but for any experienced modeler this is a pretty easy thing to correct that costs nothing.  It seems that Classic Airframe inspired himself from the Warpaint book dedicated to the Vampires, one proof being that the 3 paint schemes proposed are the 3 drawings of French aircraft existing in this book.  Here are the modifications I’ve done, refer to the numbers on the pictures:

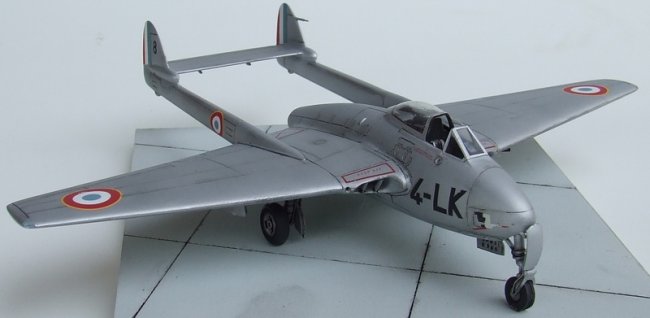

  • 02 and 03, you will see most of the modifications I did on mine to obtain something realistic. I only did the fuselage, not the wings, the engraving is false too but it does not change the look of the vampire. Added to this 2 pictures I added 2 small air output on the back of the fuselage.

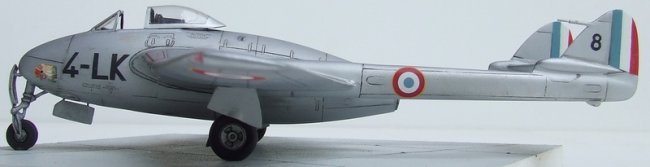

  • 01: cockpit is in resin and is wonderfull, just paint it and dry brush it. Two defaults: nothing to represent the instruments and no seat belt.

  • 04: trailing edges have to be fined

  • 05: Front landing gears are really not great, they have to be enhanced. Trap doors have been rebuilted to make them finer (ruler is in mm).

  • 06: gag, the rear trap door of the front landing gear is on the wrong side, it has to be on the left side of the aircraft and not on the left. So it has to be completely recreated (easy)

  • 07: finer trap doors. At real size it would have done 30mm thick sheet metal parts.

  • 08: canopy has been over-molded to be clearer. To compensate the thickness, it has been over-moulded with 2 sheets, 1 is then cut to represent the inside frame.

  • 09: Wind screen is too vertical and has to be corrected. All this makes a cockpit that looks better, but I don’t pretend to have the exact shape, I’ve not found 1 drawing that looks reliable.

  • 10: Lights have been recreated in a piece of transparent plastic, method is quite easy:

  • Cut a piece of transparent plastic.

  • Cut 2 sides only orthogonally to be able to glue it

  • Drill a 0.3mm hole and fill it with paint (red and blue of course)

  • Glue it and wait a full day

  • Then file off the transparent light. Finish the file by poilishing with a diary paper sheet, it’s a jeweller trick



Now regarding the paint scheme, the one in the box didn’t look interseting to me. Unfortunately, French Air Force Vampires were not colorful.  The only intersting paint scheme I've found possible is a Fb5 of the La Fayette squadron (EC 2/4), the one of the famous American volunters in 1917 in France, with the sioux head on the left side and the stork on, the right side.  Strangely, Vampire n°8 was never assigned to the La Fayette group, but a photo does exist.

Picture 11: Insignas are coming from a Heller decal sheet, they are certainly not the exact shape and size of that time, but it looks correct.  Unfortunately, the fork is in the wrong direction, so I glued it in the reverse side, and hand painted the red and black details.  Lettering has been drawn on a PC (8mm height, I think 7 would have been better), then printed and cut to make masks.
Aluminium is the Tamiya X11 one, that I did polish with a car polisher product.  You have to be fast and light, don’t wait for the polish to dry before cleaning it.  Weathering is done with oil paint.
That’s all.  OK it makes quite a lot of modifications, but there is nothing complicated and that little legendary is to be displayed in every showvase.

Laurent
