Eduard Model Accessories

1/72 Bf 109F-2 interior & exterior photo etch detail set

Product # 73686 for Revell kit

Product Article by Steve Bamford on Oct 8 2019

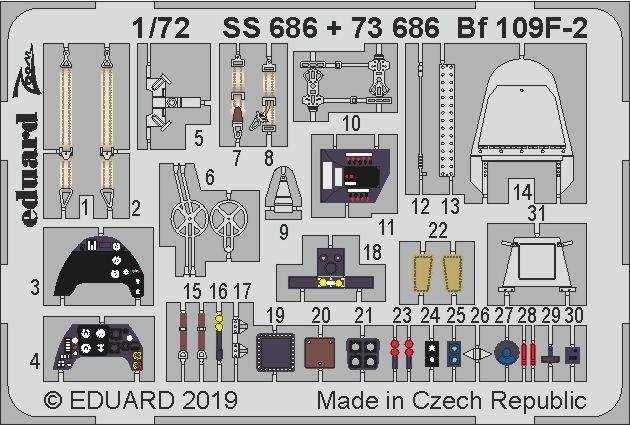

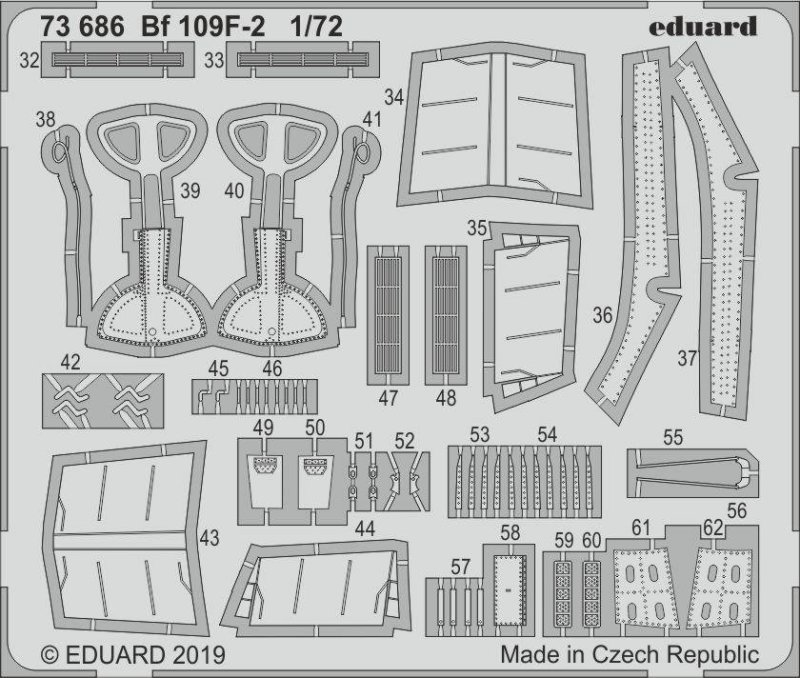

This pre-painted photo etch detail set from Eduard is part of the Zoom series of photo etch sets and is available directly from Eduard Model AccessoriesThis is a cockpit and exterior detail set designed for the 1/72 Revell Bf 109F-2.  The parts include some pre-painted parts for the instrument panel, seatbelts, sidewalls, trim wheels, rudder pedals etc.  You also get unpainted parts for wheel wells, underbelly radiator, flaps and main gear doors etc.


Click on images below to see larger images

There are 3 pages of instruction in the usual line drawing format that Eduard is famous for and which are so easy to follow.  You will be required to cut away detail on the kit parts to fit these photo etched parts, but this is indicated on the instruction sheets.

You will be required to fold the photoetch in this set, but if you have one of the Hold & Fold photo etch benders from The Small Shop, then this will be an easy process.  They have a variety of benders for sharp corners as well as rounded corners and in many different sizes.

This is a well thought out pre-painted photo etch detail set that will give you excellent cockpit and exterior detail with minimal effort.

You can buy this pre-painted photo etch detail set and thousands of other items directly from Eduard Model Accessories.

Steve Bamford

Photos and text by Steve Bamford
