Eduard Model Accessories

1/48 Bf 110D interior photo etch detail set

Product # 491106 for Dragon kit

Product Article by Steve Bamford on July 24 2020

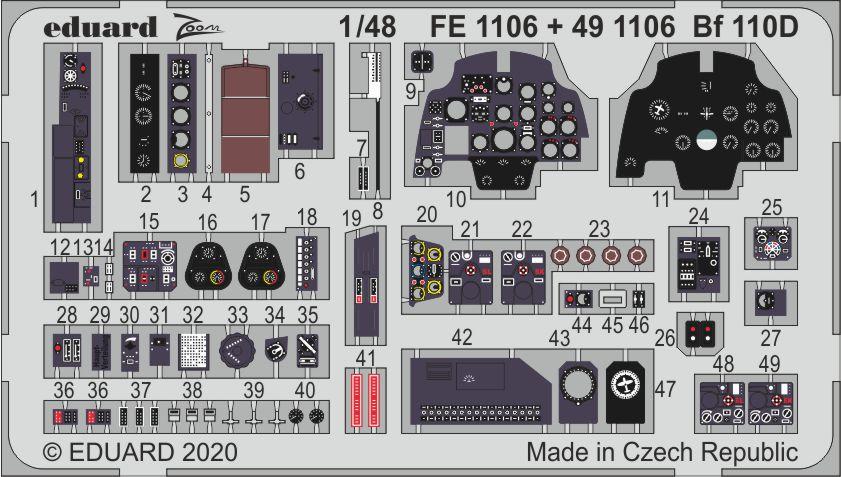

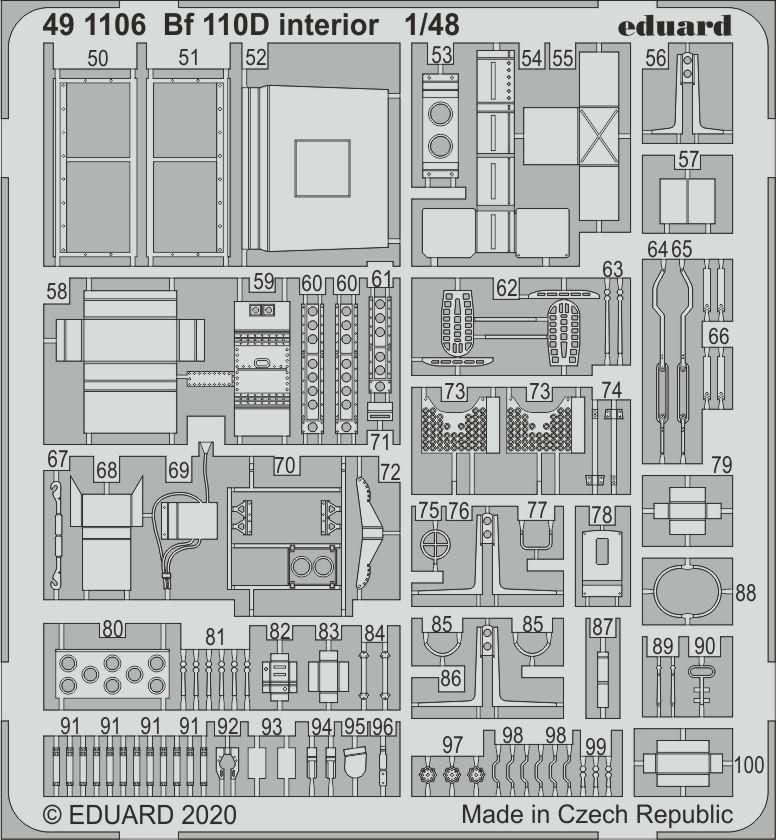

This pre-painted photo etch detail set from Eduard is part of the Zoom series of photo etch sets and is available directly from Eduard Model AccessoriesThis is a cockpit and interior detail set designed for the 1/48 Dragon Bf 110D interior.  The parts include some pre-painted parts for the instrument panel, side consoles etc.  You also get unpainted parts for braces, straps, canopy hinges, rudders pedals, gun sights etc.



Click on images below to see larger images

There are 6 pages of instruction in the usual line drawing format that Eduard is famous for and which are so easy to follow.  You will be required to cut away detail on the kit parts to fit these photo etched parts, but this is indicated on the instruction sheets.

You will be required to fold the photoetch in this set, but if you have one of the Hold & Fold photo etch benders from The Small Shop, then this will be an easy process.  They have a variety of benders for sharp corners as well as rounded corners and in many different sizes.

If you attach photo etch parts to clear styrene, then the CA glue fumes will fog the clear styrene.  To avoid fogging the clear styrene from CA glue fumes you can coat the clear styrene parts in Future to provide a barrier or use a different adhesive such as white glue or Future itself as a glue.  Future and white glue are effective to use to glue photo etch parts to clear styrene, but they do take a long time to dry.

This set really addresses many areas that do better with photo etch detailing to offer a much higher level of fine detail.  Seat belts are not included in this set but are available separately from Eduard.

You can buy this pre-painted photo etch detail set and thousands of other items directly from Eduard Model Accessories.

Steve Bamford

Click on images below to see larger images



Photos and text by Steve Bamford
