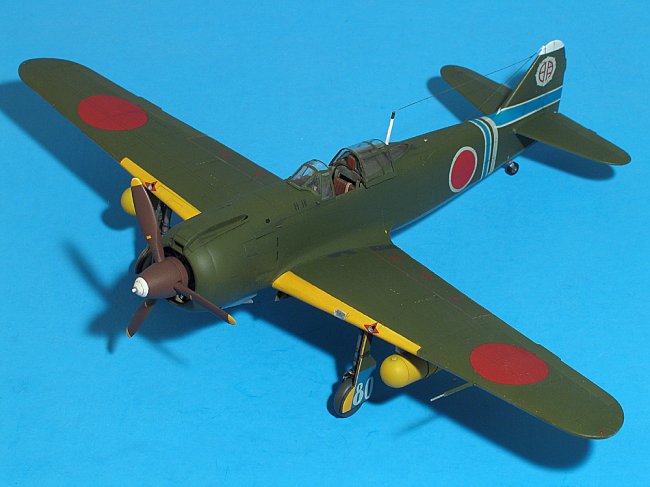

This is my build of
Hasegawa's Ki-100 Otsu. It was a very different aircraft, having been converted
from the Ki-61 "Tony." The liquid-cooled engine was replaced by a
radial, which accounts for the bulbous appearance of the nose.
Click on
images below to see larger images
|
|
|
|
I used an Eduard
photoetched detail set and a Squadron vac canopy. The kit was started in
'98, but I put it back in the box when I lost one of the landing gear
scissors. When I restarted building it, I replaced the lost part with one made
from the metal of a pastry tin. The photoetched flaps were a chore to build, but

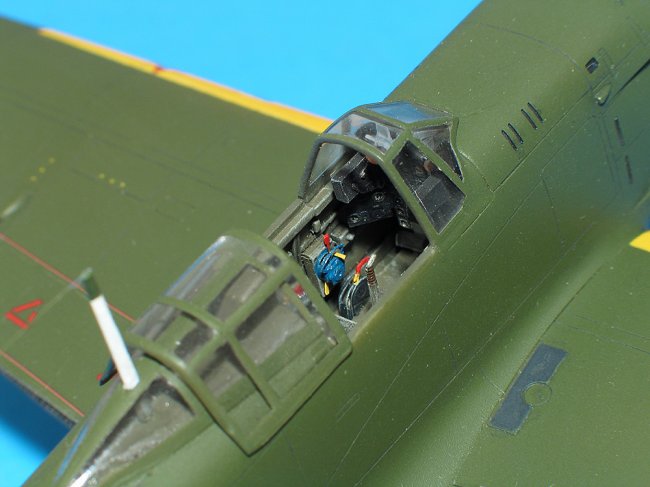

look good in the end. I replaced the gunsight "glass" with one made
from thin clear sheet.

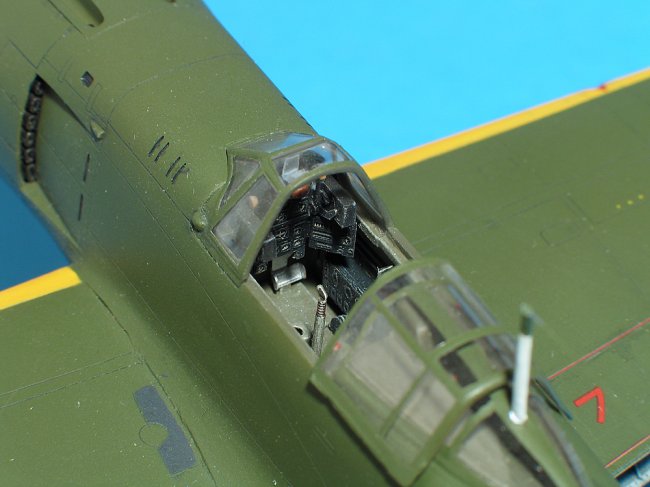

Based on photos of a restored
aircraft, I painted the cockpit and wheel wells with Model Master Olive Drab,
rather than the "sandy brown" suggested in the directions. The

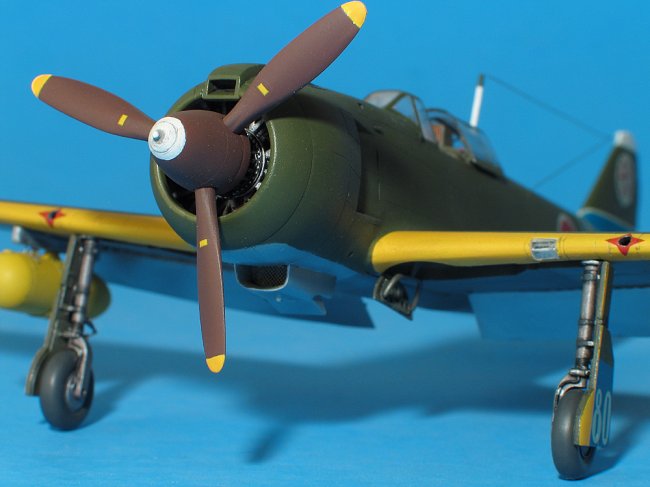

hydraulic lines on the landing gear legs were made from micro solder. Ignition
wires were added to the engine with fine copper wire.
Click on
images below to see larger images
|
|
|
|

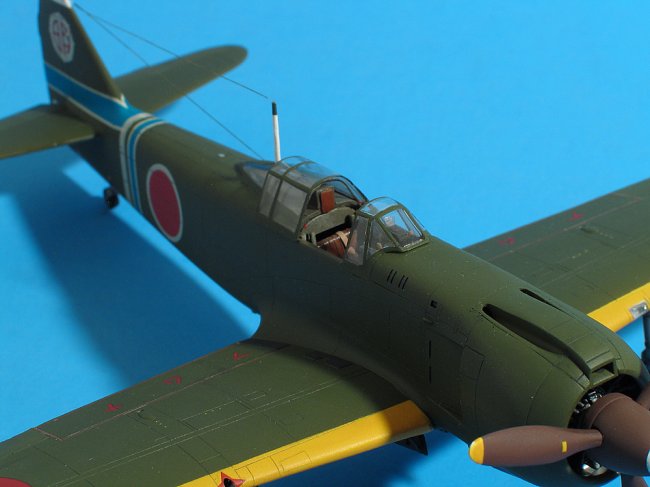

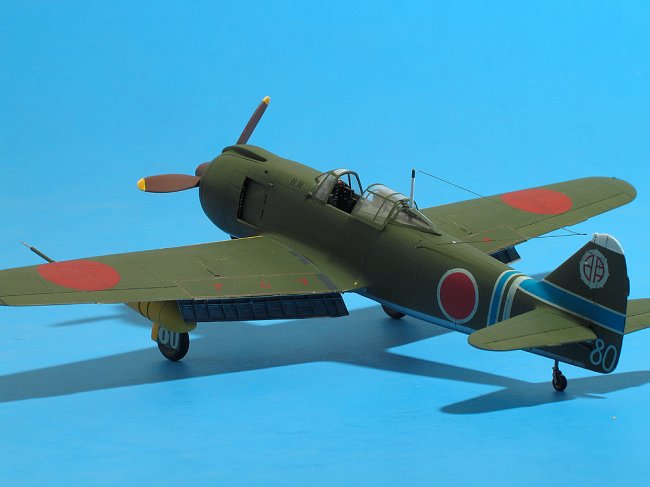

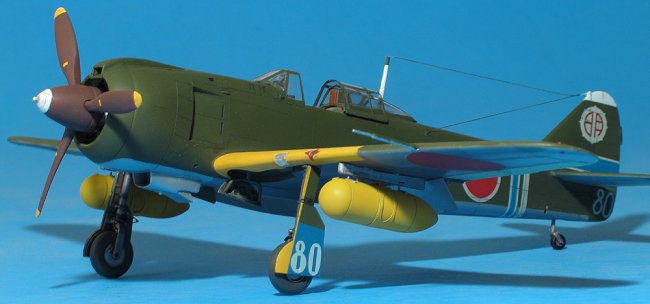

I painted the aircraft with the
out-of-production AeroMaster Warbird acrylic Kawasaki Green for the topside camo,
and Red Brown Primer for the prop and spinner. I mixed a slightly lighter green
for the fabric control surfaces.

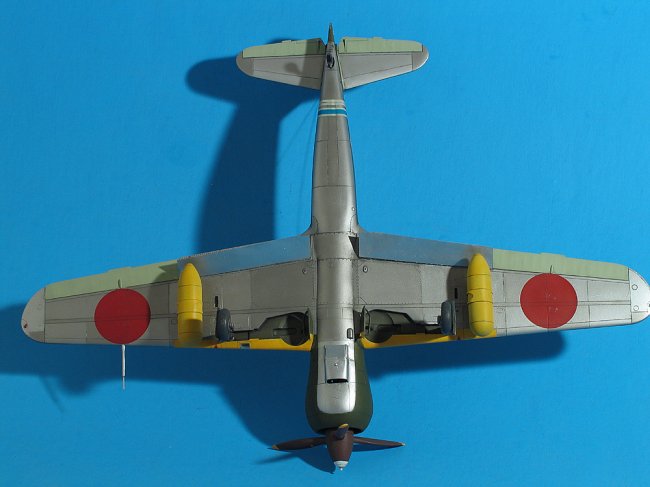

The lower surfaces, flaps, and
landing gear were painted with different shades of Alcad. Some panels received
Dullcote to vary the sheen a little. The bottoms of the ailerons and elevators
were painted with Model Master Japanese Army Gray.
Weathering, especially paint
chipping, seems to be taken to extremes on many Japanese aircraft builds. The
paint used by the Japanese chipped no more than other aircraft in the same
theater. Paint that did chip was due to a lack of primer. I have included a
wartime pic of this aircraft. You can find nearly 3,00 wartime pics of Japanese
aircraft here: http://www.warbirdpix.com/armynavy.htm It
is very useful for answering questions of what degree of weathering is
appropriate for a particular aircraft. It is one of my main sources for WW II
reference pics.
This was an enjoyable build of a
unique aircraft. I hope you enjoyed it also.
Bill
Visit my website to see other
models of mine, I also build models on commission. http://www.pix.prettyneatinc.com/
