The
story of the Sukhoi T10-1
The
very first prototype of the future Su-27, the Sukhoi T10-1 (Flanker A) first
flew on May, 20, 1977.
The
first test flights revealed some significant problems with the stability and
performance of the new fighter prototype. Soon, it was obvious, that new fighter
would not be able to match and exceed its counterpart, the F-15.
Even
in this situation, the command of the Soviet VVS (Air Force) pushed for an early
start of the serial production of new fighter. However, professionalism of the
Su-27’s
design team head, Mikhail Simonov, lead him to propose a complete redesign of
the airplane in order to live up to the original specifications.
Finally,
Sukhoi people received the go-ahead from the VVS command and the Soviet government
to start complete redesign of the original concept. The new project started in
beginning of 1980, and already in April 1981, first T10-S (or Flanker as we know
it now) prototype was ready for the first test flight.
Needless
to say, that the courageous decision of the Sukhoi team to completely redesign
the T10-1 have paid off… the T10-S (Flanker B) did outperform most
expectations, and gave the VVS fighter equal or even superior to the U.S. F-15
Eagle.
Click on
images below to see larger images
|
|
|
|
The
Project
Needless
to say, I had to rework nearly everything on the kit. The project could be
classified as something between
conversion and scratchbuilding.
As
a base, I used the 1/48 Su-27 Mini Hobby Models/Zhengdefu/Trumpeter kit (it is
cheap-horrible fit, inaccuracies, simplifications in this kit were not problem,
as I had to rework everything anyway).
I
do not have many comments re the process of the building of the model. I think
the pictures say it better than words.

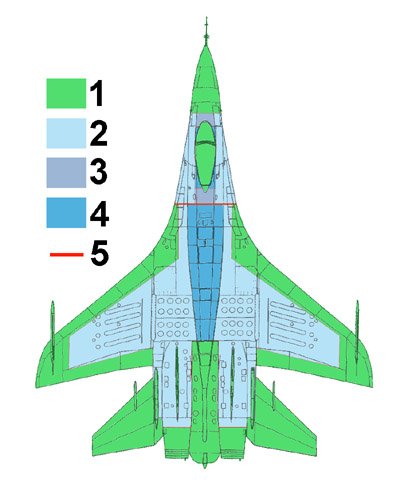

Here
you can see the "'visualization" I did before I actually started to ‘cut’
… this is some sort of the plan to make the T10-1 out of the Su-27 kit.
Legend:
1)
Scratchbuilt parts
2)
Plastic from the original 1/48 Su-27
3)
Areas cut and then modified with other portions of the fuselage from the
original kit
4)
Plastic card strips are blue sections on this part of fuselage, then it was
sanded and reshaped
About
2cm was cut out here from the original Su-27 kit and the fuselage halves were
then blues together again
(of
course, similar extensive work was done on the lower part of the fuselage… you
can see it on the in-progress pics)

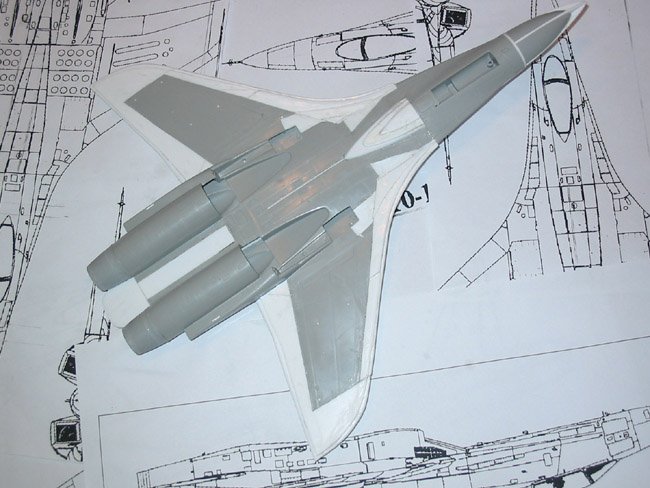

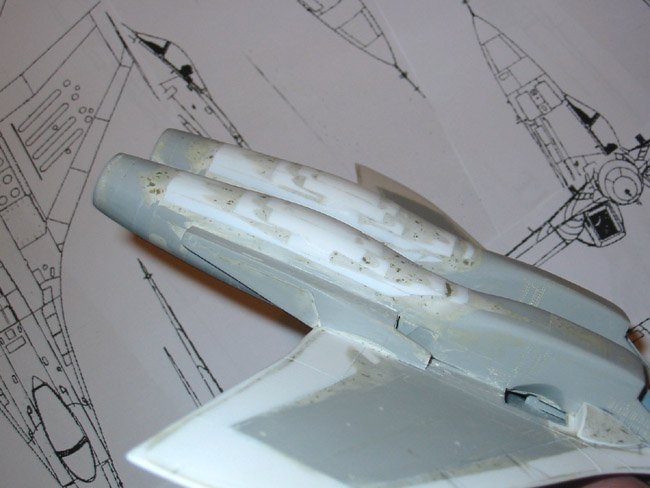

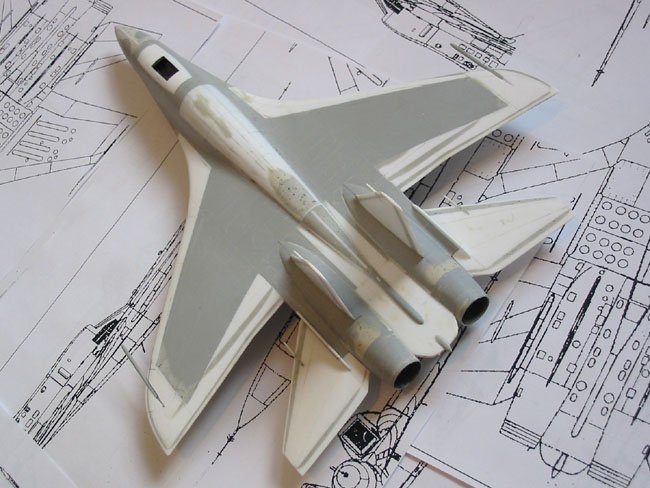

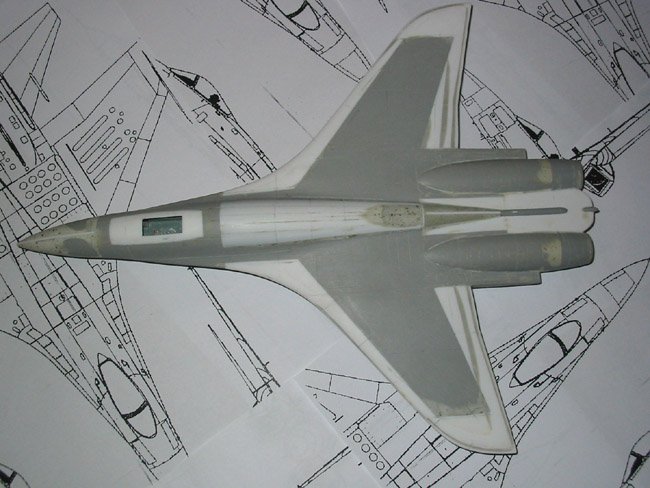

Here
is the ‘step
by step’ progress to make the T10-1:
Click on
images below to see larger images
|
|
|
|
Click on
images below to see larger images
|
|
|
|
And

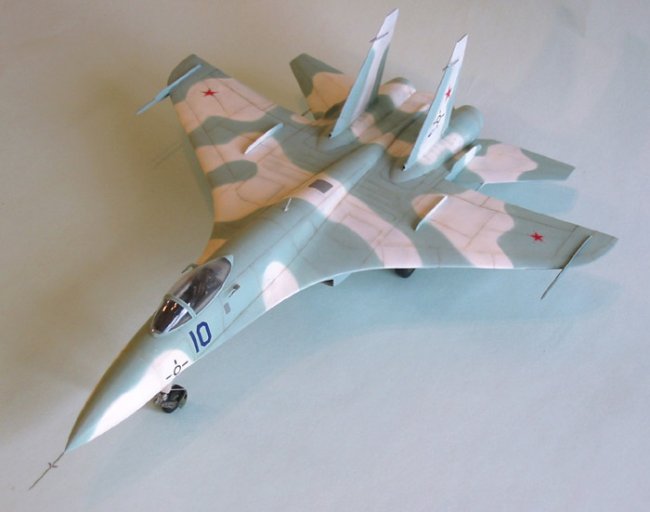

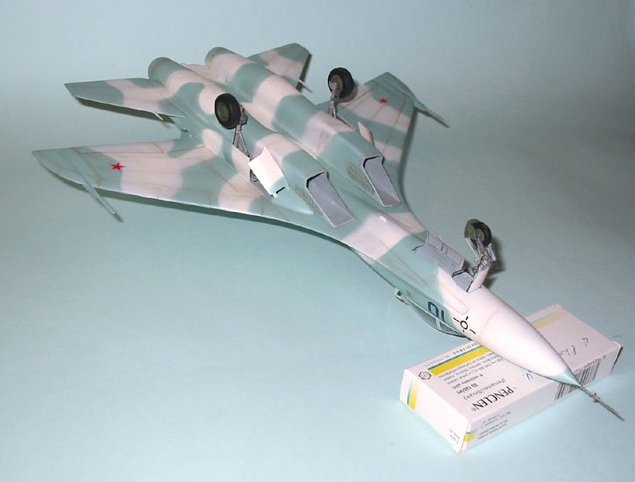

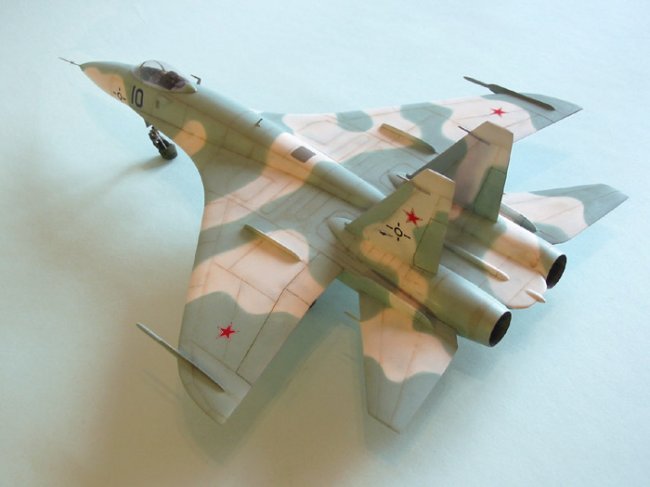

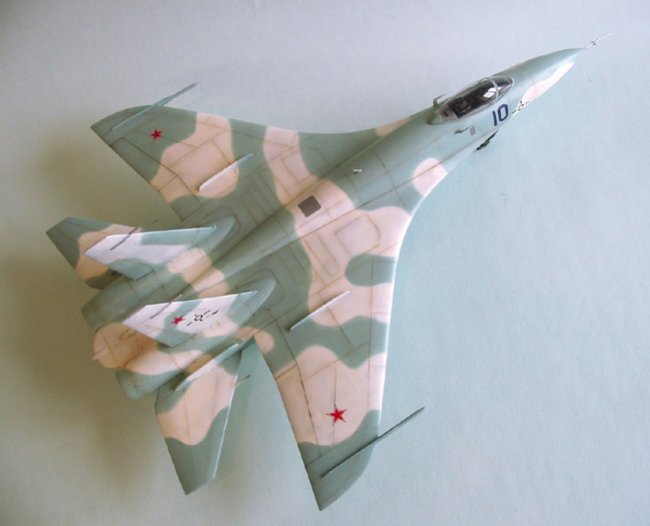

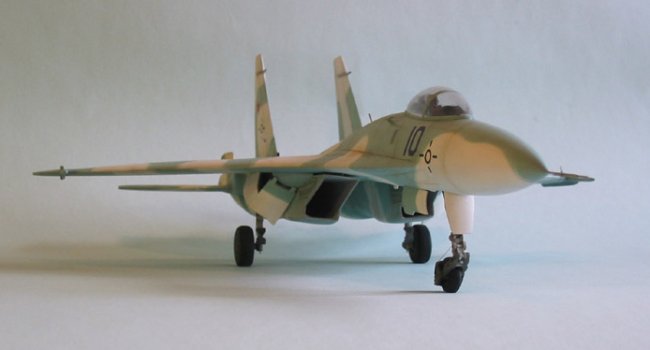

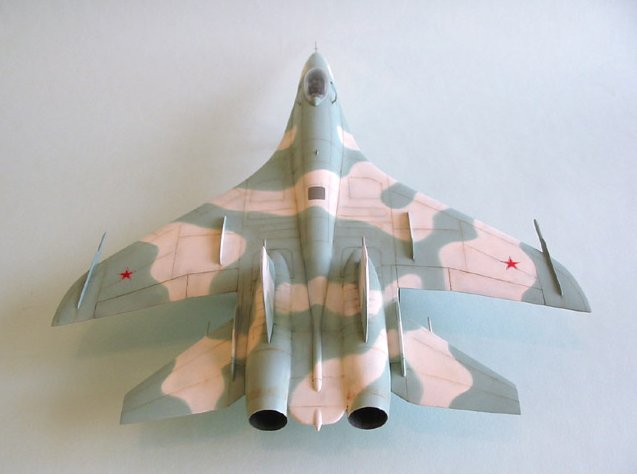

at the end (after 10 months), the finished model looks like this:
Conclusions
The
project was started in January 2005, and it was finished in October of the same
year. Overall, the work went
smoothly. The main issue is to plan everything carefully, and to make a clear
picture of where to cut what before you really start to work with the plastic.
Now,
my 1/48 Sukhoi T10-1 is finished, and I am probably the only person in the
world, who has this airplane in 1/48 in his display case.
….Which is definitely source of pride for a modeller in me. :-)
Cheers,
Jan
