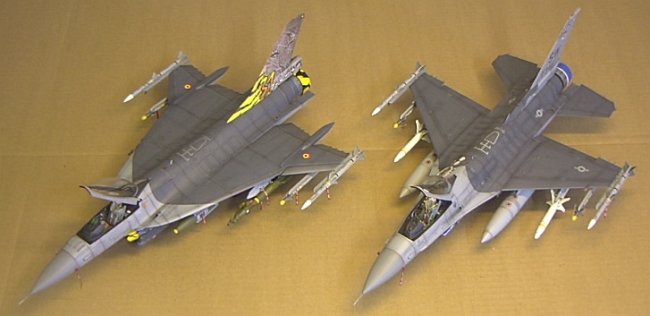

1/32 Academy F-16CJ and Revell F-16XLCG

by Stephen Cornett

--------------------



If you want to build a decent F-16XL without paying a mint for a conversion set this is the way to go. This is my second XL build and it’s not that complicated. The Academy F-16 is a great kit to borrow from. Using the extra stores, intakes and a number of other parts you can build a very nice F-16XL “What if” kit. Plus, your not limited by accuracy, so you can be as creative as you’d like.

Click on images below to see larger images







I used an F-16A cockpit set from Blackbox and decals from Zotz. The cockpit tub had to be sanded down such that the seat sits on the lower part of the kit. I used the Small Mouth Intake from the Academy kit. It fits fairly well but I had to add approx. ½” to extend it back to the wheel wells. I just cut ½” off the Ace intakes and filled in the gap. It works out fairly easy. I used the spare canopy from the academy kit. Here I had to do some cutting and rework around the back part of the cockpit tub. The fuselage around the canopy had to be raise 1/8” with some styrene strips. This also helps with the cockpit tub fitting. The area just behind the front canopy has to be cut to match the Academy parts, then boxed in to seal all the opening. The nose cone was molded and copied from the Academy kit. That took care of the front of the aircraft.

I tapered the wings back to make them more accurate. The front part of the wingroot should sweepback at more of an angle. For the tail I went with the Pratt and Whitney can. The can fits really well but you have to use the housing from the academy kit as well. Just a small bit of sanding once it’s glued in place and your set. I also adapted the tail extension from the academy kit to replace the one on the Revell kit. I decided to drop the flaps and slats for this build. The wings fit extremely bad. A lot of trimming and dry fitting is required to get the wings to fit properly. Once they are glued in place a lot of sanding is needed to get the seams to disappear. Once the wings are set some rescribing is needed. After all that, I just added a few thousand rivet holes.

The targeting and navigation pods, AIM-120s, AIM-9Xs, GBU-16s and GBU-31s all came from the academy kit. The wing pylons, nose cone and pitot tube were molded and resin copies were made.

I used .016 lead to scratch build the intake cover and small RBF covers on the seats.

The Academy kit was built using a BB cockpit set, CMK wheel wells, Afterburner Decals and a number of parts that I casted myself. The CMK set was designed for the Tamiya kit, but I does fit with a little adjustment. I used the AN/ALQ from the Tamiya F-16CJ to make a AN/ALQ 184 (short version). I also made the resin pitot tube covers.

Stephen

Click on images below to see larger images





















Photos and text © by Stephen Cornett
